Machines don’t always have to run at maximum speed in various sectors. They occasionally require fast speed for production and slow speed for setup. In different situations, machines can bear heavy loads at one point and light loads at another. Dual Speed Motors are a straightforward and clever solution that enterprises can utilise in place of building two independent motors or utilising intricate control systems.
As the name suggests, a dual speed motor is a single motor that has two operating speeds. This adaptability lowers installation costs, conserves energy, and increases production.
With more than 35 years of experience in the motor industry, we at EMP Drive, Coimbatore, design and provide premium dual speed motors to businesses in Tamil Nadu and beyond. Let’s have a thorough understanding of dual speed motors’ operation, applications, and reasons for being a wise choice for contemporary businesses in this blog.

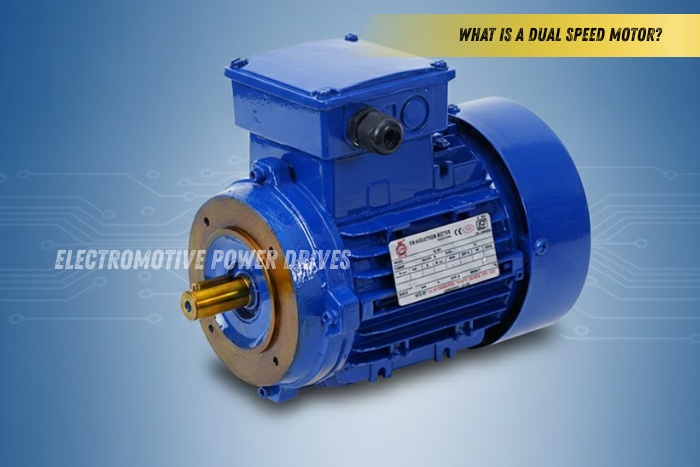

1. What Is a Dual Speed Motor?
An electric motor that can operate at two distinct revolutions per minute (RPMs) is called a dual speed motor. By altering the motor winding’s magnetic pole count, this is accomplished.
In simple terms:
- Low speed mode: greater control and lower power usage
- High speed mode => Increased output and productivity
Industries can switch between speeds based on operating needs thanks to this architecture.
2. How Does a Dual Speed Motor Work?
Dual speed motors typically work using:
🔹 Pole Changing Method
The motor winding is designed in such a way that it can change the number of poles.
- More poles → Lower speed
- Fewer poles → Higher speed
For example:
- 4-pole configuration → Around 1440 RPM
- 8-pole configuration → Around 720 RPM
By switching between these configurations, the motor provides two speeds.
Our dual speed motors at EMP Drive, Coimbatore, are designed to smoothly switch between speeds without compromising the stability of the machine.
3. Why Industries Prefer Dual Speed Motors
✔ Flexibility
One motor handles two speed requirements.
✔ Cost Saving
No need to purchase two separate motors.
✔ Energy Efficiency
Low speed operation saves electricity during light load conditions.
✔ Simple Control
Easier than installing complex VFD systems in some applications.
✔ Reduced Mechanical Stress
Gradual operation reduces wear and tear.
4. Applications of Dual Speed Motors
Dual speed motors are widely used in:
Textile Industry
- Power looms
- Winding machines
- Spinning units
Low speed for setup, high speed for production.
Material Handling Systems
- Conveyors
- Hoists
- Elevators
Low speed for loading/unloading, high speed for transfer.
Pumps and Fans
- Cooling towers
- Ventilation systems
Run at low speed during light demand, high speed during peak requirement.
Manufacturing Units
- Mixers
- Crushers
- Agitators
Different stages of processing require different speeds.
We provide dual speed motors that are tailored for heavy industries, manufacturing, and textiles at EMP Drive in Coimbatore.
5. Energy Savings with Dual Speed Motors
Electricity cost is a major concern for industries. Running machines at full speed all the time wastes energy.
With dual speed motors:
- Machines run at low speed when full speed is not required
- Power consumption reduces significantly
- Heat generation decreases
The adoption of EMP Drive Dual Speed Motors has resulted in a notable decrease in energy costs for numerous enterprises in Coimbatore.
6. Improved Machine Life
Frequent high-speed operation increases mechanical stress.
Dual speed motors help by:
- Reducing sudden load impact
- Lowering vibration levels
- Decreasing heat buildup
- Improving bearing life
This directly increases the lifespan of both the motor and the connected machinery.
7. Real Example – Textile Unit in Coimbatore
Single-speed motors were being used for weaving in a textile unit close to Sulur, Coimbatore. Yarn broke during setup due to excessive pace.
After installing EMP Drive Dual Speed Motors:
- Yarn breakage reduced
- Energy usage dropped
- Loom stability improved
- Production efficiency increased
This is how one motor with two speeds made a big operational difference.

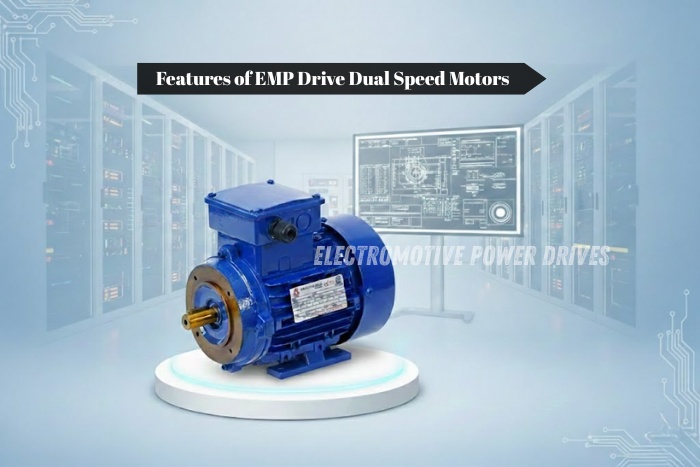

8. Features of EMP Drive Dual Speed Motors
Our dual speed motors are designed for industrial reliability:
✔ High-grade copper windings
✔ Efficient cooling system
✔ Low vibration and noise
✔ Rugged cast-iron construction
✔ F-Class insulation
✔ Suitable for continuous duty
✔ Custom pole configurations
Each motor manufactured at EMP Drive, Coimbatore undergoes strict quality checks to ensure consistent performance.
9. Maintenance Benefits
Dual speed motors are simple in design, which means:
- Fewer electronic components
- Easy troubleshooting
- Lower maintenance cost
- Longer service intervals
This makes them ideal for industries that want reliable and low-maintenance solutions.
10. Safety Advantages
Dual speed motors improve safety by:
- Allowing controlled low-speed operation
- Reducing sudden mechanical shock
- Improving load handling stability
In heavy machinery and material handling, this added control prevents accidents.
11. How to Choose the Right Dual Speed Motor
Before selecting a dual speed motor, consider:
- Required RPM levels
- Load type
- Operating hours
- Duty cycle
- Environmental conditions
Our technical team at EMP Drive, Coimbatore helps industries choose the right configuration for maximum efficiency.
12. Future of Dual Speed Motors
Even as automation grows, dual speed motors remain relevant because they are:
- Reliable
- Cost-effective
- Energy-efficient
- Simple to operate
They continue to be a preferred solution in textiles and manufacturing sectors.
13. Why Coimbatore Industries Trust EMP Drive
Being based in Coimbatore, EMP Drive understands local industrial needs. Industries choose us because we offer:
✅ 35+ years of motor manufacturing expertise
✅ Custom motor solutions
✅ Reliable performance
✅ Strong local service support
✅ Honest technical guidance
We focus on delivering motors that improve productivity and reduce operating cost.
Conclusion
Dual speed motors are a clever choice for sectors that need simplicity and versatility. They contribute to lower energy usage, longer machine life, and better operational control by providing two speeds in a single motor.
Dual speed motors are a clever choice for sectors that need simplicity and versatility. They contribute to lower energy usage, longer machine life, and better operational control by providing two speeds in a single motor.
A dual speed motor can be the ideal option for your gear if it requires flexibility, efficiency, and long-term dependability.
